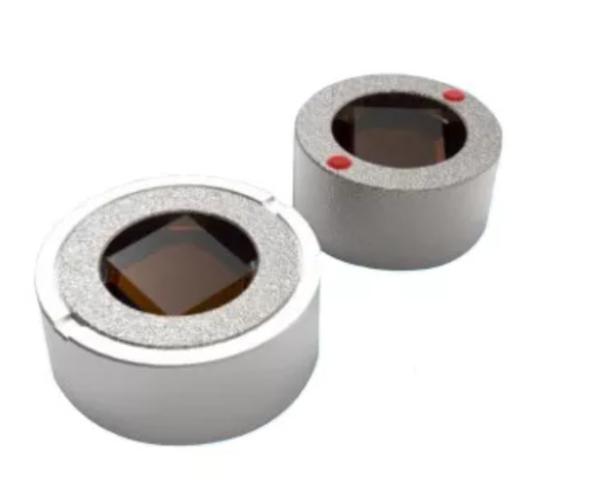

Free Space Isolator
Optical isolator mainly solves the reflection problem of light in
the optical path.
The devices are characterized with high performance,high
reliability and low cost.
It has been widely used in EDFAs, Raman amplifiers,DWDM
systems,Fiber lasers,transmitters and other fiber optic
communication equipments to suppress back reflection and back
scattering.
Features
- High Isolation
- Low Insertion Loss
- Optical Path Epoxy Free
- Compact Size
- RoHS Compliant
Application
- Tunable Laser
- Fiber Laser
- Optical Transmitter
Performance Specifications
(Standard) Single Stage
| Parameter | Premium | A Grade |
| Operating Wavelength (nm) | 1310, 1550 and CWDM wavelength |
| Min. Isolation at Center Wavelength (dB) | 42 | 40 |
| Insertion Loss (lc, 23°C ) (dB) | < 0.20 | < 0.25 |
| Clear Aperture (mm) | > 0.90 or > 0.80 |
| Tilt Angle of Input Light ( ° ) | 5 |
| Operating Temperature ( ° C) | -5 ~ +70 |
| Storage Temperature ( ° C) | -40 ~ +85 |
| Power Handling (mW) | 300 |
(Standard) Dual Stage
| Parameter | Premium | A Grade |
| Operating Wavelength (nm) | 1310, 1550 and CWDM wavelength |
| Isolation at Center Wavelength (dB) | 60 | 55 |
| Insertion Loss (lc, 23°C) (dB) | < 0.30 | < 0.35 |
| Clear Aperture (mm) | > 0.90 or > 0.80 |
| Tilt Angle of Input Light ( ° ) | 5 |
| Operating Temperature ( ° C) | -5 ~ +70 |
| Storage Temperature ( ° C) | -40 ~ +85 |
| Power Handling (mW) | 300 |
Ordering Information
| FSI | | | | | | |
| Type | Style | Grade | Wavelength | Clear Aperture | Size | |
| S=Single Stage
D=Dual Stage | P=Premium
A=Grade A | 13=1310nm
15=1550nm
XX =Others | 1=F0.90mm
2=F0.80mm 3=F0.70mm
5=F0.40mm
X=Custom | 01=F3.0x2.0mm
02=F3.0x2.5mm 03=F3.0x3.0mm
04=F2.5x1.4mm
05=F2.5x2.0mm
06=F2.5x2.5mm
07=F2.5x3.0mm
08=F2.1x1.25mm
09=2.5x2.5x2.0mm
10=2.5x2.5x3.0mm
XX=Custom Size | |
