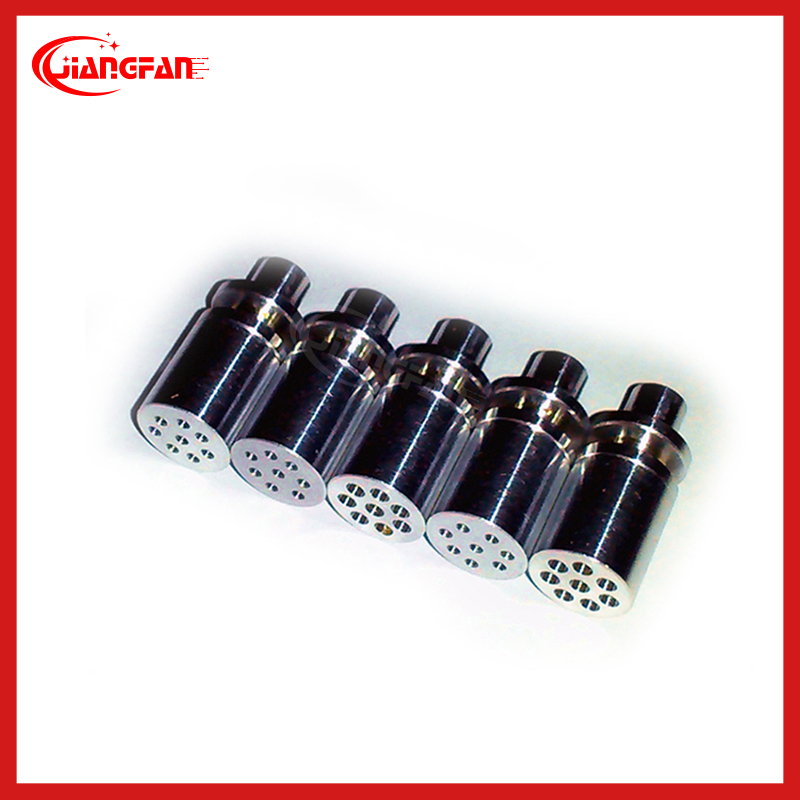

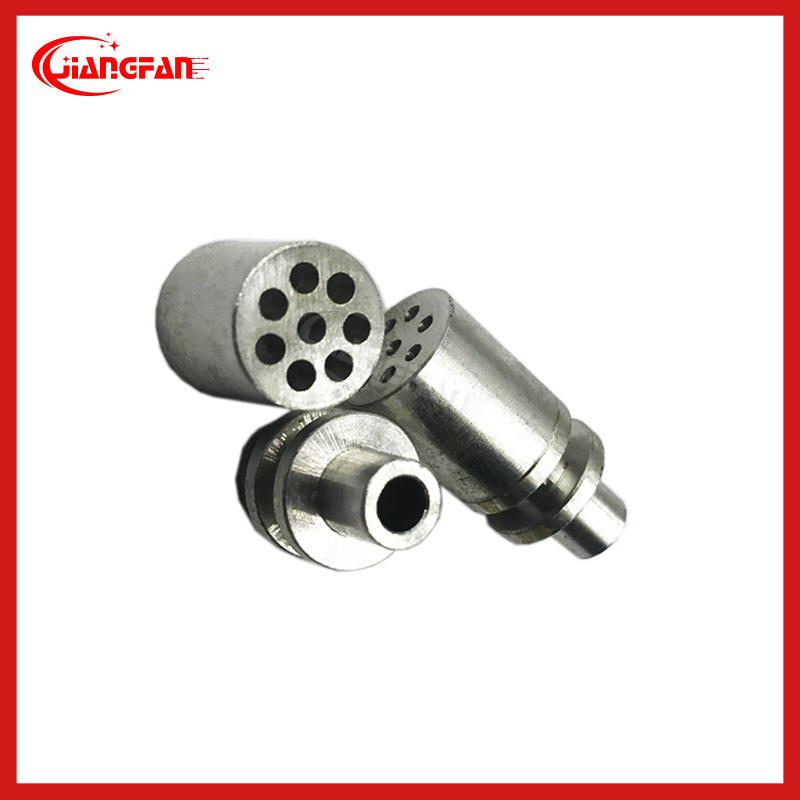

FZQ-03 Optical cable Bundle splitter
Breakout Kits for 3mm Terminations 8core 1 point 8 cores fiber
patch cord 0.9-3.0mm
Description:
The kits provide the most compact, easy-to-install fan-out solution
requiring no additional hardware or space than that required for
terminating tight-buffered cables. Indoor kits feature a 900 um
fan-out assembly that is color coded to match the fiber color
scheme. The fan-out assembly is available with 6- or 12-fiber units
in lengths of 0.6 m (25 in) or 1.2 m (47 in). These different
lengths provide the installer the flexibility needed for a variety
of hardware options.
This fanout kit is designed for indoor use only (0~60°C rating). It
accepts a 3.0mm optical cable and fan out to 900um diameter
furcation tubes which are color-coded to match the fiber color
scheme. This buffer tube fan-out kit provides the ultimate solution
for those users who want to field-install connectors.
Features:
- Color coded tubing for easy identification (also available in
numbered, same color tubes).
- Saves time in the termination process.
- Accepts 900um tight buffer.
- Compatible with most connector styles.
Application:
- The "build up" or "break out" of 900um distribution cables for
termination.
- General indoor use where extra protection is needed.
- Computer rooms.
FZQ-03 product ordering information:
Core No. OD2 |
Core Dia OD2 | OD Cable Dia | OD1 Product Dia | L Product Lenths |
material |
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | | | 5 | Other | 5 | Other | 5 | Other |
| 6 | 24core | | | | | | | | | | |
| 7 | Other | | | | | | | | | | |
Our products:
Packaging & Shipping
According to the customer's requirement, we can provide 200
pieces/bag, 500 pieces/bag, each part is separately packed, not a
whole set/bag
The quotation of this product does not bear transportation costs
We can provide packing according to customer's requirement,
quantity, weight and volume.
We can provide customized products for customers. We only need to
provide requirements, samples, specifications, drawings, etc.
