Interconnection 12 Core Fiber Patch Cable For Optics To Electronic Equipment

Ask Lasest Price
Brand Name :	GAPHO
Model Number :	FIber Patch Cable
Price :	negotiate
Payment Terms :	T/T, D/A, D/P, T/T, L/C
Supply Ability :	20000
Delivery Time :	7-10 day

Add to Cart

Product Details
Company Profile

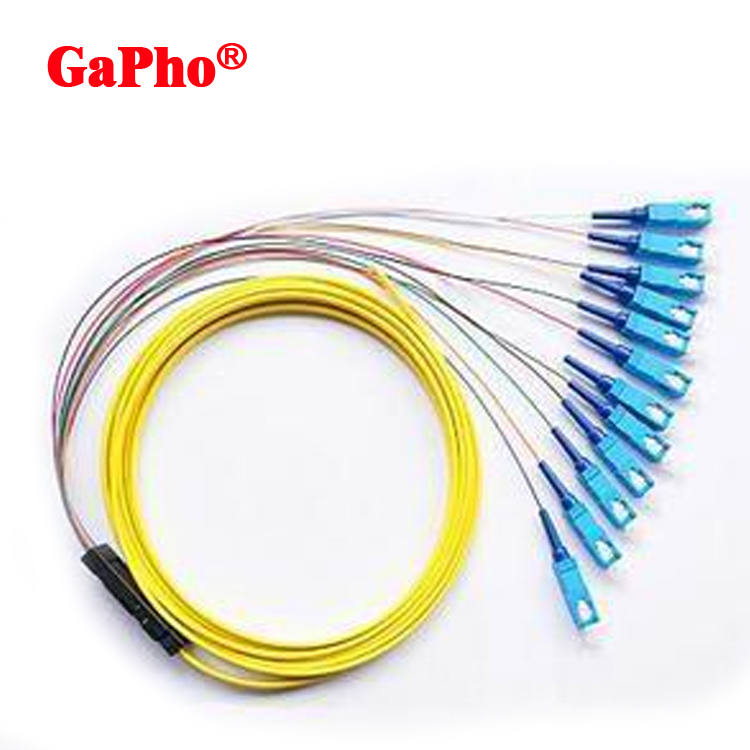

Interconnection 12 Core Fiber Patch Cable For Optics To Electronic Equipment

Fiber Patch Cable 12 core for interconnection of fiber cable systems and optics-to-electronic equipmentFiber Patch Cable or Fiber jumper.docx

(Fiber Patch Cable or Fiber jumper) is an fiber cable that has fiber connectors installed on one or both ends. General use of these cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.

Features

Compliant with JIS C-5973, Bellcore
Optical performance 100% factory test
Precision ceramic ferrule with end-face geometry per IEC proposal
Riser & LSZH cable option
Low insertion loss
Low back reflection

Applications

Telecommunication
CATV Networks
Data Communication Networks
Active device termination
Instrumentation
Local Area Network

Specification

ITEM	VALUES
Insertion Loss	≦ 0.15 dB Typical (SM) ≦ 0.2 dB Typical (MM) ≦ 0.3 dB Typical (MTRJ MM)
Return Loss	＞ 40dB (PC) ＞ 45dB (SPC) ＞ 50dB (UPC) ＞ 60dB(APC)
Temperature Range	－40°C ~ 75°C
Durability	＜ 0.2 dB change after 500 matings

Fiber Patch cord Ordering information

Singlemode and Multimode

Single mode fiber patch cord uses 9/125um glass fiber, Multimode fiber patch cord uses 50/125um or 62.5/125um glass fiber. Single mode and multimode refer to the fiber cable types. Single mode Fiber Patch Cord is used in long distance data transmission. Multimode Fiber Patch Cord is use in short distance transmission. Typical single mode Fiber Patch Cord used yellow fiber cable; Typically multi mode Fiber Patch Cord used orange fiber cable.

Cable material and cable diameter

There are various kinds of Fiber cable material for different environment and applications, PVC, Riser, Plenum, OFNR, OFNP, LSZH, 10 Gig Aqua. Typical Fiber cable diameter can be 0.25mm, 0.9mm, 2.0mm, 3.0mm.

Simplex and Duplex

Simplex means this Fiber Patch Cord is with one cord, at each end is only one fiber connector. Duplex can be regarded as two Fiber Patch Cord put side by side. Duplex Fiber Patch Cord usually with Clip on the fiber Connector to combine it.
