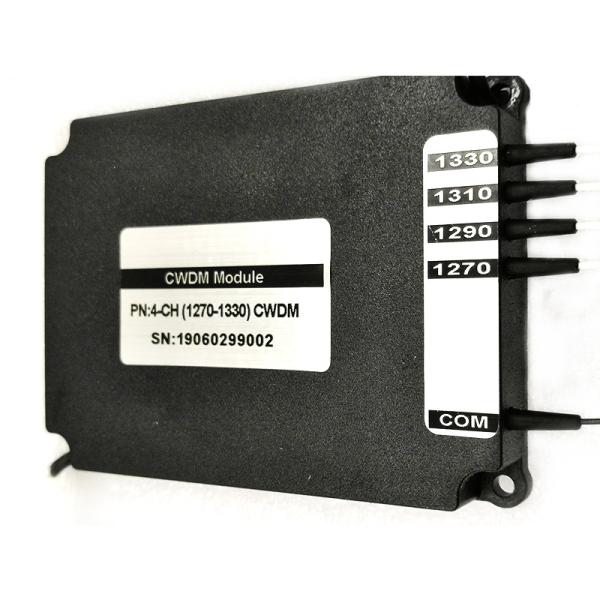

High reliability and stability 1310,1550 nm 6Ch CWDM Mux+Demux
Module corning SMF-28e ultra fiber
| Document Name: CWDM Mux+Demux Module |
SPEC# | SP-WDM-00XXX |
Reversion | 01 |
| Product Name | DTL PN | Customer PN | Product Description |
| CWDM Mux+Demux Module | CWDMXC131020110 | | 6Ch CWDM Mux+Demux Module , Starting wavelength 1310,Dimensions L120xW80xH18mm,1.8mm loose tube, Connector.(COM&MON FCPC; other LCPC) |
Performance Specification
| Parameter | Unit | Value |
| Operating Wavelength | nm | 1260~1620 |
| Centre Wavelength | nm | 1310,1470,1490,1530,1550,1570 |
| Passband bandwith | EXP Port | nm | 1260~1297&1323~1457&1503~1517&1583~1620 |
| CWDM Port | nm | CW±6.5 |
| Insertion Loss | - | - | Mux | Demux |
| 1% Port | nm | 24 | 24 |
| CWDM Port | nm | 2.5 |
| Adjacent Channel Isolation | dB | ≥30 |
| Non-Adjacent Channel Isolation | dB | ≥40 |
| EXP Port Isolation | dB | ≥15 |
| Ripple | dB | ≤0.50 |
| PDL | dB | ≤0.30 |
| PMD | ps | ≤0.20 |
| Return loss | dB | ≥50 |
| Directivity | dB | ≥50 |
| Power handling | mW | ≤300 |
| Operating temperature | °C | -10 ~ +70 |
| Storage temperature | °C | -40~ +85 |
| Fiber Type | - | Corning SMF-28e ultra fiber |
| Connector Type | - | COM&MON FCPC; other LCPC |
| Pigtail type | | 1.8mm white loose tube |
| Pigtail length | m | 0.5-0.6 |
| Dimensions | mm | L120xW80xH18(ABS) |
Dimension drawing(mm)

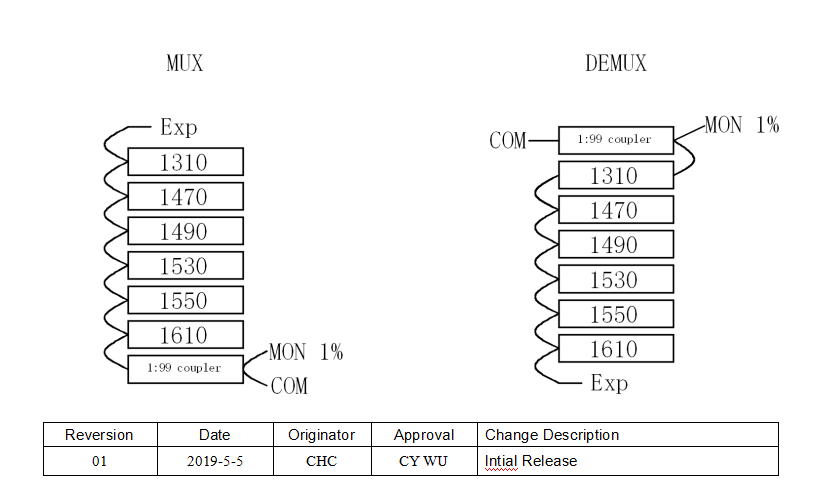

Structure diagram
