1x16 rack fiber optical switch SM 1260 nm china facotory supply B 1x16 rack optical switch.pptx

Description:

Optical switch is an optical path control device, which plays the role of controlling the optical path and converting the optical path. It plays an important role in optical communication applications. Optical switches are mainly used in: multi-channel optical monitoring in optical transmission systems, automatic switching of LAN multi-light sources/detectors, and optical sensing multi-point dynamic monitoring systems; optical test systems for optical fibers, optical devices, networks and field engineering Optical cable testing; optical device assembly and adjustment. The 1×N optical switch can switch one input routing to one of the N output routings.

Features:

• It has the characteristics of small insertion loss and fast switching speed.
• Using LCD display, very intuitive display data, convenient for users to operate.
• Automatic scanning can be set, and the maximum switching interval is 99 hours, 59 minutes and 59 seconds; the "start channel" and "end channel" of the scan can also be set.
• The "device address" can be set, which is convenient for users to use one serial port to control multiple optical switch instruments when the serial port resources are tight.
• The baud rate of serial communication can be set according to the actual situation. The baud rate that can be set is 1200, 2400, 4800, 9600, 19200, 57600 and 115200.

Specifications:

Panel to Explain

Power: Master switch of power supply
RJ45:Communications network management interface ;
RS-232: Rs- serial interface ; RS232 serial communication interface;
LCD:Devices that display information directly;
▲: Key to move up; ▼: Key to move down;
Enter: Key to determine;
Esc: Key to cancel;
com,1~16:Fiber interface;

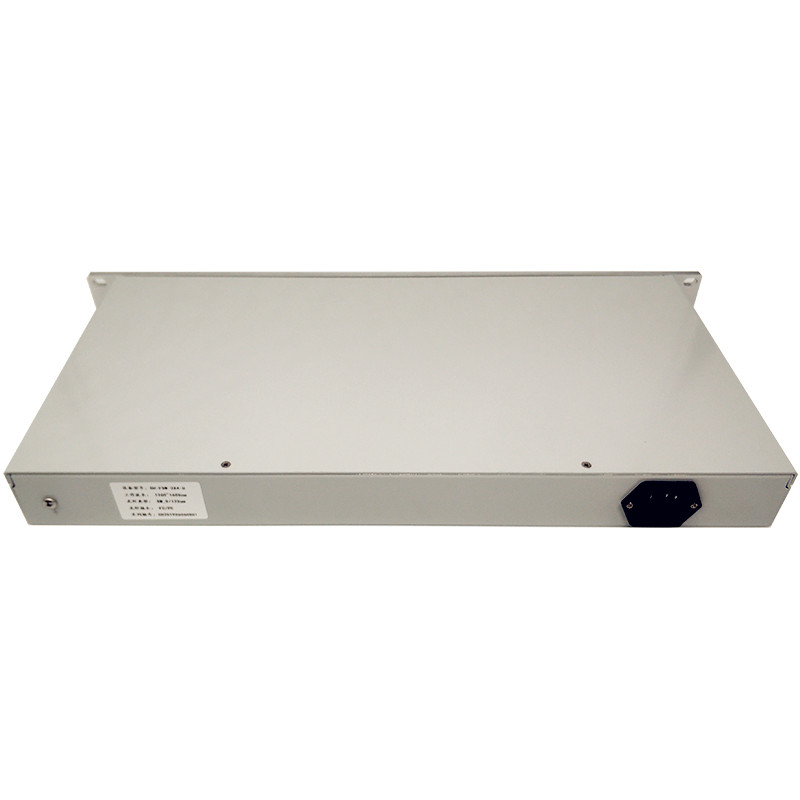

AC:100~240V: P o w e r c o r d i n t e r f a c e ;

Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company promotes production efficiency and reduces product costs through continuous technological innovation and new process applications.
The company's high-quality products, reasonable prices, and accurate delivery date to cooperate with customers.

 Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise specializing in design, development, production and processing:
The company has processing equipment: plastic injection molding machine, CNC machining center, CNC lathe, sheet metal bending, laser, riveting, polishing machine, ultrasonic, milling machine, wire cutting, punching machine, surface grinder, quality control equipment, projector, micrometer, ring gauge Product control degree, etc. We have rich experience in supporting production, high quality control, high efficiency, and high-quality after-sales service. The company has an enterprise team with professional skills and dedication and 8 years of manufacturing experience. The company has established long-term and stable cooperative relations with many scientific research units, research universities, and manufacturers in various fields.
